TOP SPEED
28 MPH
RANGE
UP-TO 75 miles
MOTOR POWER
750W Peak
PAYLOAD
300 lbs
FOLDABLE
Not Foldable
BRAND WARRANTY
2-year
Geometry
| Measurement |
Regular |
Large |
| A – Seat Tube Length |
440 mm |
500 mm |
| B – Top Tube Length Horizontal |
605 mm |
635 mm |
| C – Bottom Bracket Drop |
50 mm |
50 mm |
| D – Head Tube Length |
140 mm |
140 mm |
| E – Head Tube Angle |
70° |
70° |
| F – Seat Tube Angle |
74° |
74° |
| G – Rear Chainstay Length |
480 mm |
480 mm |
| H – Front Wheel Center |
675 mm |
705 mm |
| I – Wheelbase |
1150 mm |
1180.7 mm |
| J – Reach |
420 mm |
450 mm |
| K – Stack Height |
620 mm |
618 mm |
| L – Fork Length |
480 mm |
480 mm |
| M – Fork Offset |
43 mm |
43 mm |
| N – Trail |
81 mm |
81 mm |
| Wheel Size |
27.5″ |
27.5″ |
| Stand Over Height |
687 mm |
695 mm |
| Rider Height (Range) |
160–175 cm (5’3″ – 5’10”) |
175–195 cm (5’10” – 6’4″) |
Specifications
General Info
| Weight |
68.5 lbs |
| Total Weight Limit |
300 lbs |
Rider Fit
| Rider Height |
Regular: 5’3″-5’10”
Large: 5’10”-6’4″ |
| Ebike Class |
Class 2 (Convertible to Class 3) |
Protection & Range
| Water Resistance |
Bike – IPX5 / Components – IPX6 |
| Range |
Up to 75 Miles |
| Safety Certifications |
UL Safety Certified (UL 2849) |
| Usage |
Urban / commuter eBike |
| Drive Type |
Hub motor system |
| Battery Type |
Removable internal battery |
| Wheel Size |
27.5 inch |
| Frame Type |
Step-through / commuter frame |
| Smart Features |
Connected eBike system |
| Ride Style |
City / hybrid riding |
| Terrain |
Road and light trails |
Frameset
Frame and suspension components
| Frame |
6061 Aluminum |
| Fork |
80mm travel, adjustable coil spring with preload & lockout |
| Rear Spacing |
148mm |
| Fork Spacing |
100mm |
Wheelset
| Front Wheel |
27.5″ Double Wall Aluminum, 36H, 15x100mm Thru Axle |
| Rear Wheel |
27.5″ Double Wall Aluminum, 750W Nutted Axle Hub Motor |
Tires
| Tires |
Kenda Kwick Seven-5 Sport 27.5″x2.2″ |
| Type |
Urban / hybrid tires |
Ebike System
| Motor |
Hub Motor, 80Nm (96Nm Boost), 1188W Peak (1440W Boost) |
| Motor Torque |
80Nm |
| Motor Power |
750W (1188W Peak) |
Electronics

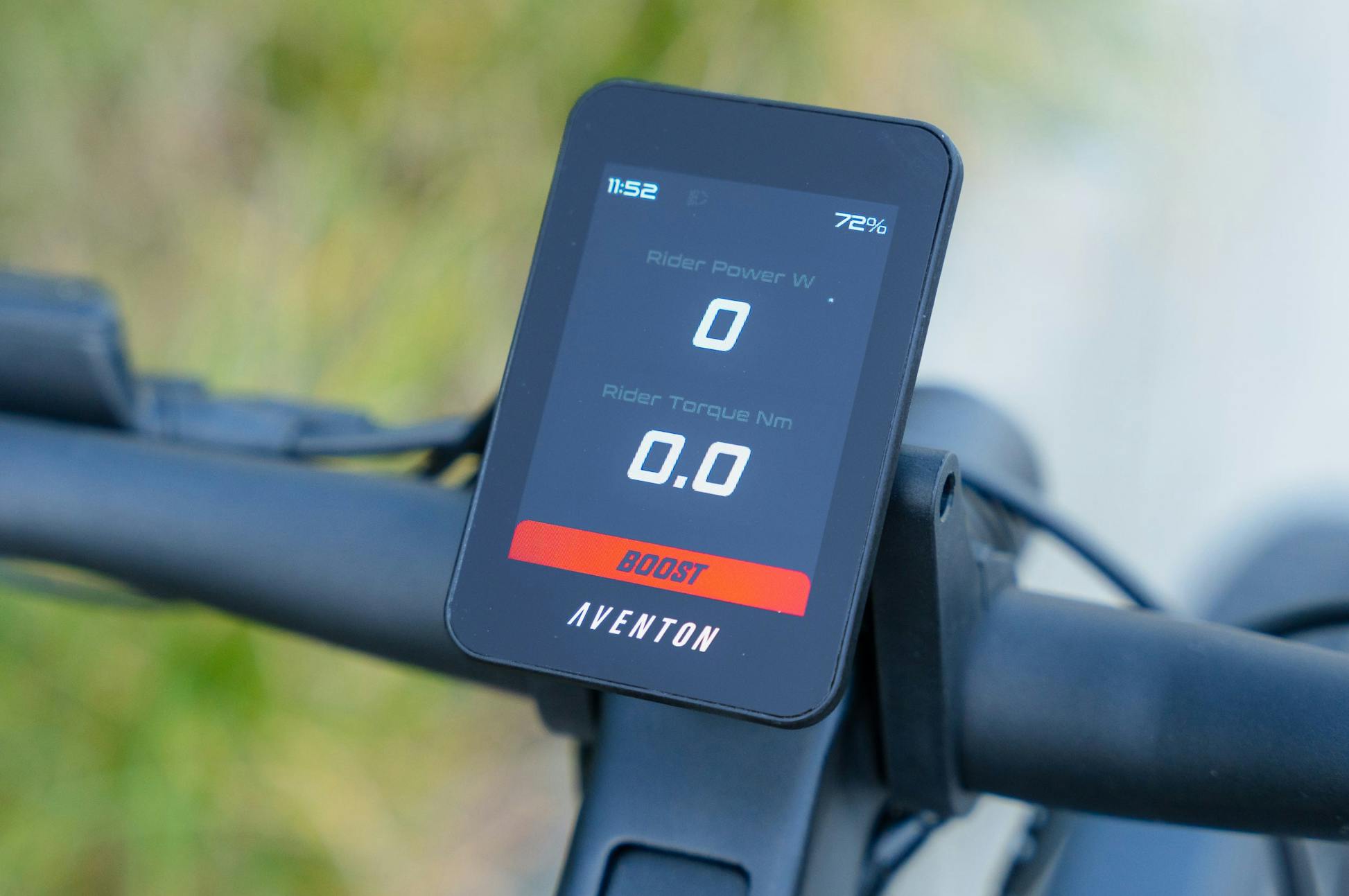

| Display |
Aventon A280 |
| Battery |
36V, 20Ah (733Wh), LG 21700 cells |
| Battery Weight |
8.7 lbs |
| Controller |
36V, 33A |
| Throttle |
Included |
| Sensors |
Cadence & Torque Sensor Compatible |
| Charger |
42V 4A charger |
| Charging Time |
5 hours (0% to 100%) |
| Lights |
Integrated front & rear lights |
Smart Features
| Braking |
Regenerative Braking |
| Ride Modes |
Ride Tune |
| Connectivity |
4G / GPS |
| Security |
E-lock, unusual activity detection |
| Control |
Hold Mode & remote notification |
| System |
Smart connected features |
Brakes
| Front Brake |
Tektro HD-E3520 Hydraulic Disc with E-Cutoff |
| Rear Brake |
Tektro HD-E3520 Hydraulic Disc with E-Cutoff |
Brake Rotors
| Front Rotor |
180mm, 6-bolt |
| Rear Rotor |
180mm, 6-bolt |
Drivetrain
| Rear Derailleur |
Shimano Altus RD-M310 |
| Shifter |
Shimano 8-Speed Trigger |
| Chain |
7/8 speed, 120L |
Transmission
| Cassette |
Shimano CS-HG200-8, 12-32T |
| Chainring |
48T |
| Chainring BCD |
N/A |
Crankset
| Crankset |
165mm |
| Bottom Bracket |
Square tapered, sealed, double-sided torque sensor |
Pedals
| Pedals |
9/16″ Composite Platform |
| Type |
Platform pedals |
Cockpit
| Saddle |
Aventon Saddle |
| Seatpost |
30.9mm Suspension Seatpost with 50mm travel |
Seatpost Details
| Seatpost Clamp |
34.9mm |
| Travel |
50mm suspension |
Controls
| Handlebars |
Aluminum, 31.8mm, 680mm |
| Stem |
Aluminum, 31.8mm clamp, 60mm, 90° adjustable |
Grips
| Grips |
Aventon Lock-on grips |
| Type |
Ergonomic lock-on |
