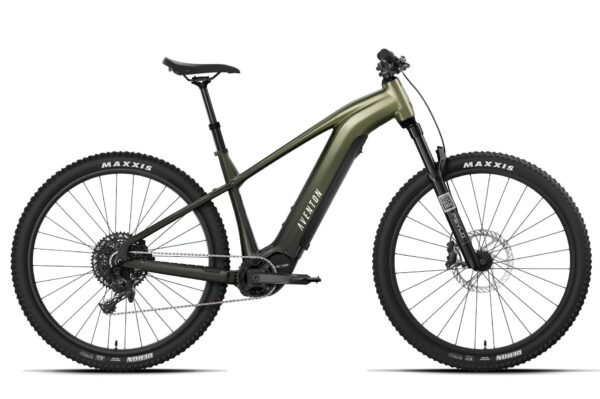

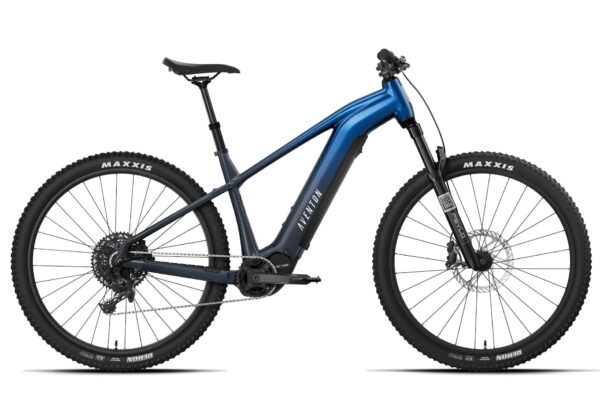

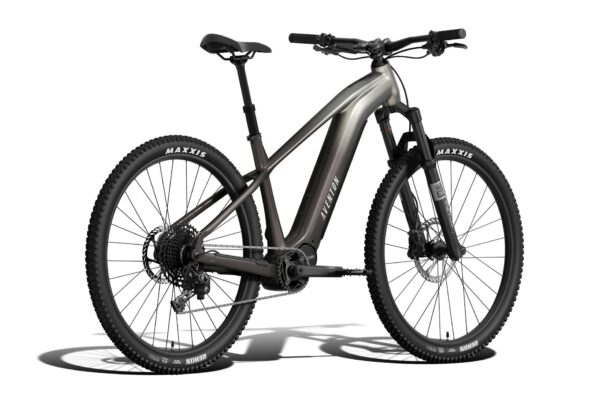

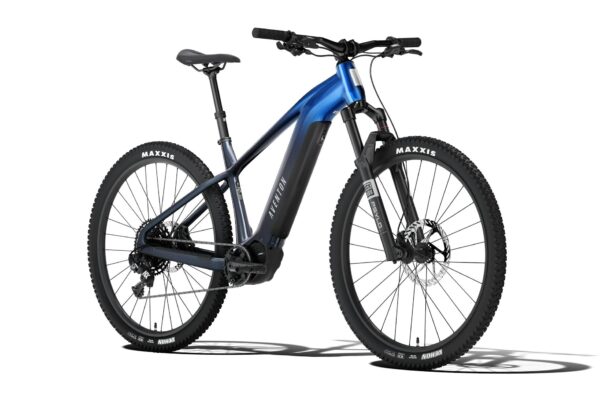

Name: Aventon – Ramblas ADV Ebike
Brand: Aventon
SKU: 136
Availability: OutOfStock

TOP SPEED

20 MPH

RANGE

UP-TO 90 miles

MOTOR POWER

750W Peak

PAYLOAD

300 lbs

FOLDABLE

Not Foldable

BRAND WARRANTY

2-year

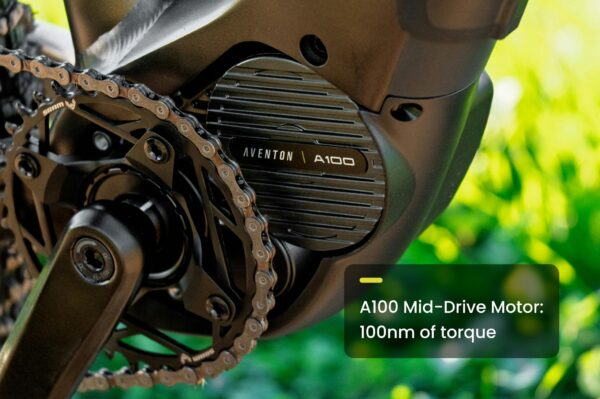

A100 Mid Drive Motor

The A100 mid-drive motor is engineered to enhance your ride with confident and capable motor assistance. With 750W of peak power and a max torque of 100Nm, the A100 is the heart of the Ramblas ADV, enabling you to crush climbs and power through trails with ease.

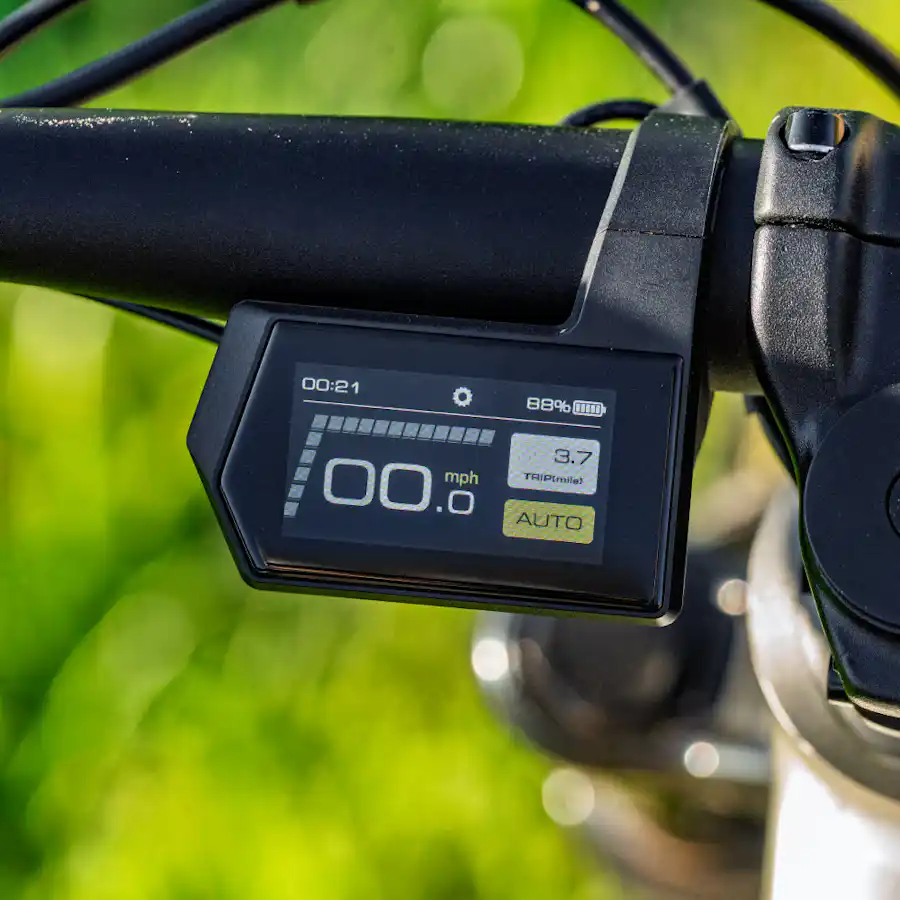

AUTO Mode

No need to switch between pedal assist modes, simply switch to AUTO mode and let the Ramblas ADV supply the perfect amount of power based on the slope of terrain you’re riding. Take advantage of all 100Nm on steep climbs, and automatically dial back the output on flatter sections of trail or road.

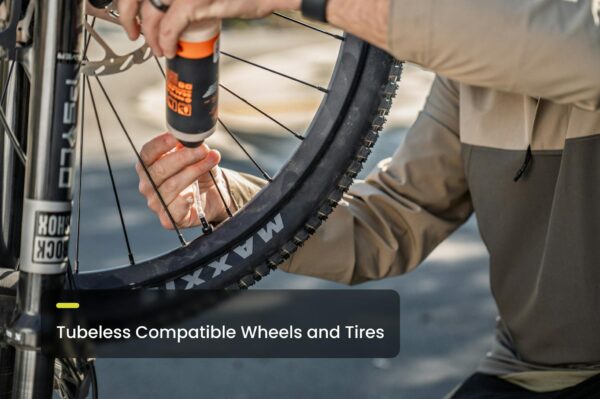

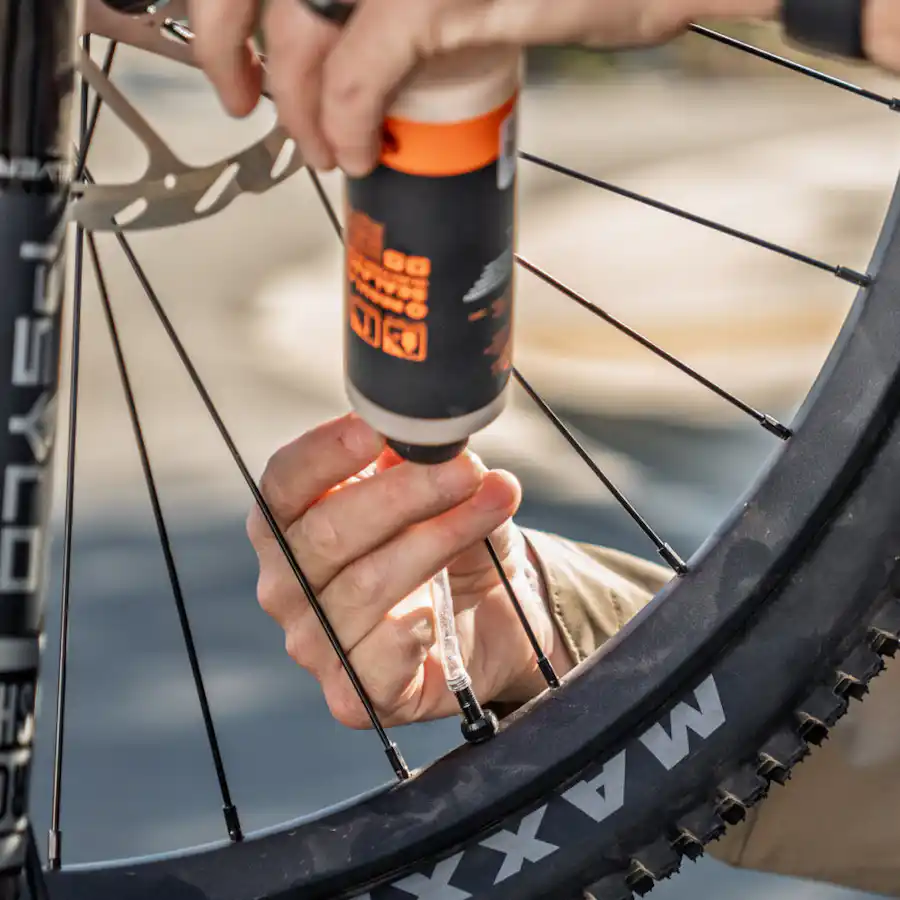

Tubeless Compatible Wheels and Tires

Tubeless wheels and tires provide better flat protection, and allow riders to run lower tire pressures for improved traction and comfort and trails.

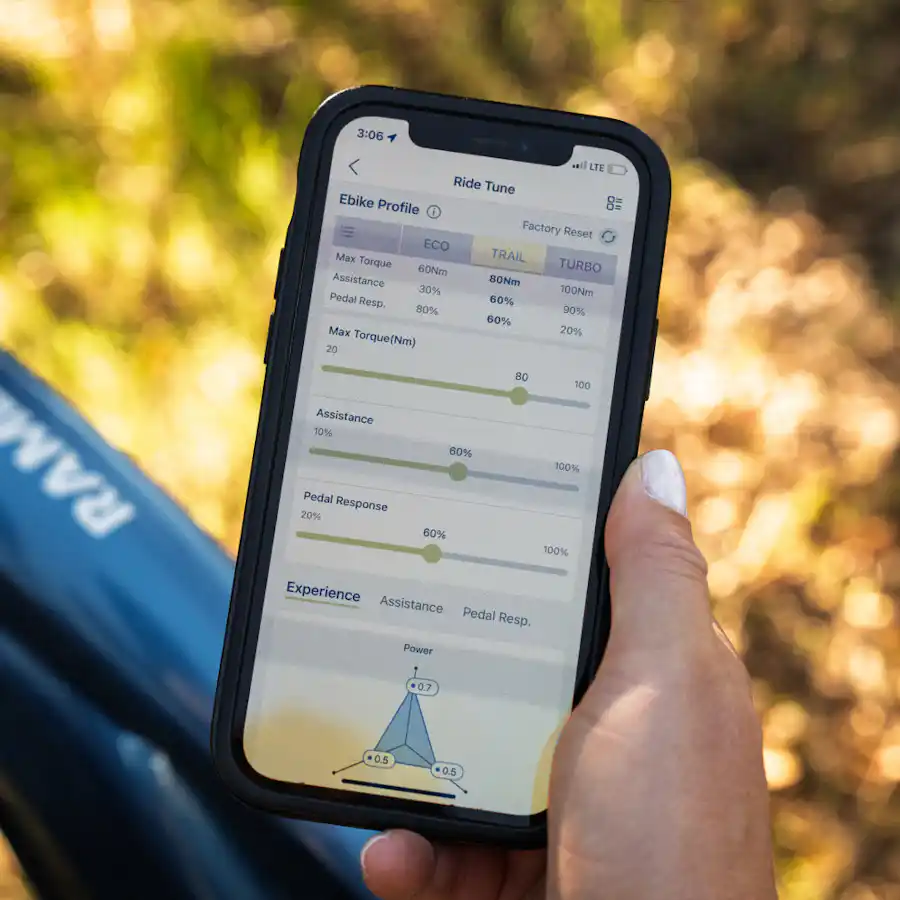

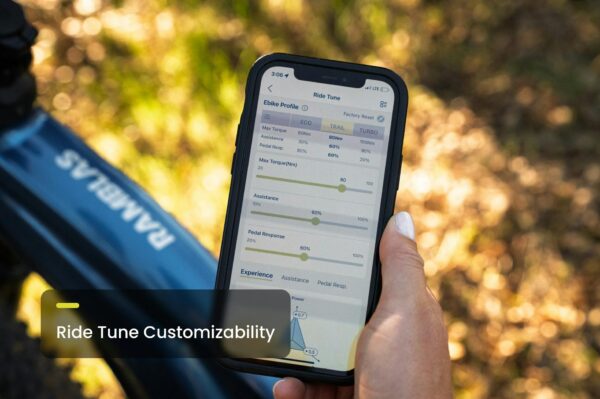

Ride Tune Customization

Ramblas ADV allows you to fine tune each of your pedal assist modes (ECO, TRAIL, TURBO) for a customized ride feel that fits your style and preferences

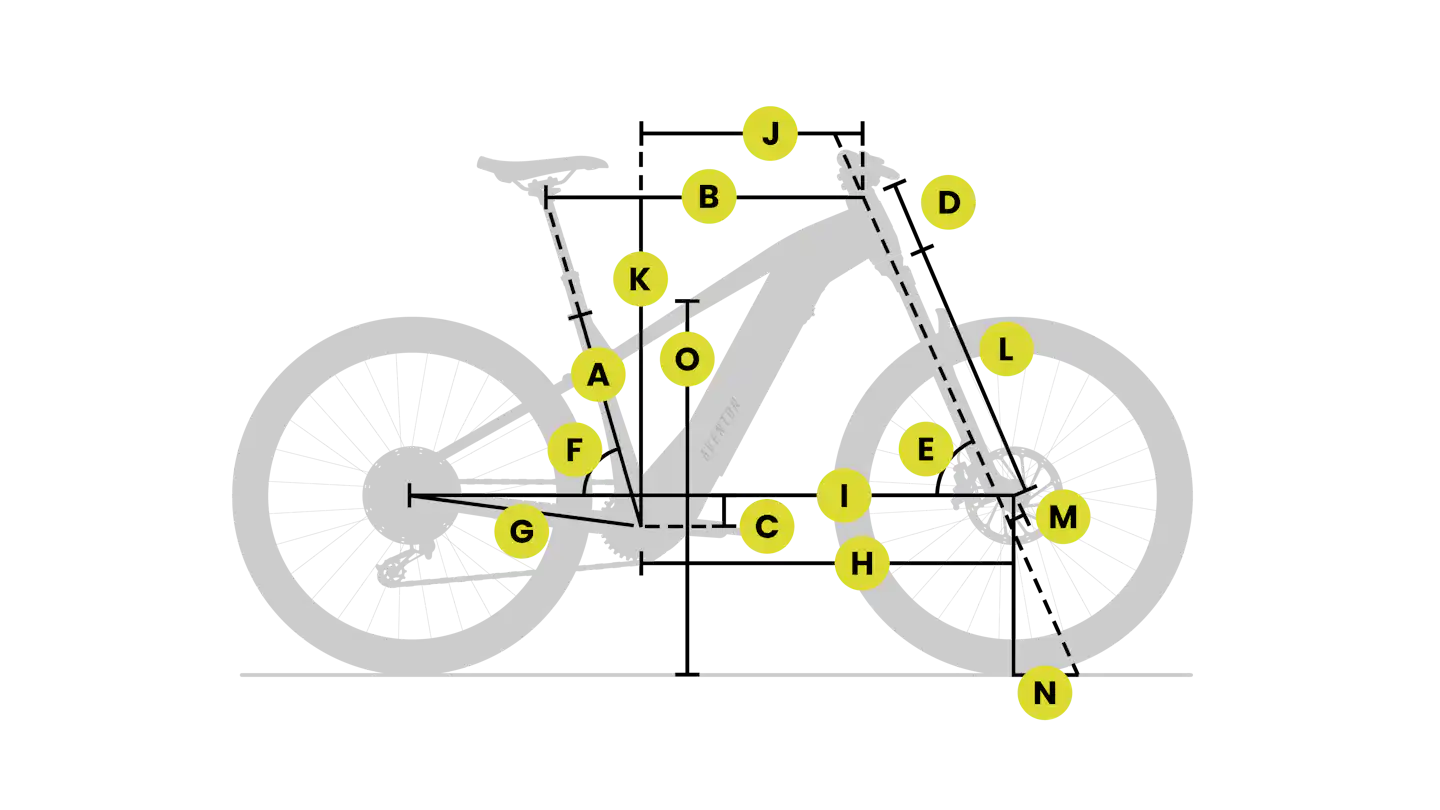

Geometry

Measurement	Medium	Large	Extra Large
A – Wheel Size	29″	29″	29″
B – Seat Tube Length	410 mm	450 mm	490 mm
C – Top Tube Length Horizontal	616.5 mm	642 mm	668 mm
D – Bottom Bracket Drop	55 mm	55 mm	55 mm
E – Head Tube Length	125 mm	135 mm	135 mm
F – Head Tube Angle	66.5°	66.5°	66.5°
G – Seat Tube Angle	74.5°	74.5°	74.5°
H – Rear Chainstay Length	465 mm	465 mm	465 mm
I – Front Wheel Center	744 mm	770.5 mm	796 mm
J – Wheelbase	1203 mm	1230 mm	1256 mm
K – Reach	432.5 mm	455 mm	481 mm
L – Stack Height	656.5 mm	665 mm	665 mm
M – Fork Length	547 mm	547 mm	547 mm
N – Fork Offset	44 mm	44 mm	44 mm
O – Trail	117 mm	117 mm	117 mm
Standover	702 mm	712 mm	719.5 mm
Rider Height (Range)	165 – 176 cm (5’5″ – 5’9″)	177 – 188 cm (5’10” – 6’2″)	188 – 195 cm (6’2″ – 6’5″)

Specifications

General Info

Model	Ramblas ADV Ebike
Weight	54 lbs

Rider & Limits

Total Weight Limit	300 lbs
Rider Height	5’5″ – 6’5″

Dimensions & Protection

Box Size	59 x 13 x 36
Water Resistance	Bike – IPX6 / Motor – IP67
Range	Up to 90 miles
Bike Certification	TUV Certified (UL 2849 / UL 2271)
Battery Certification	TUV Certified (UL 2849 / UL 2271)
Usage	Mountain / trail riding
Frame Type	Hardtail MTB frame
Wheel Size	29 inch
Battery Integration	Integrated battery system
Drive Type	Mid-drive motor
Safety	Certified eBike safety standards

Frameset

Frame and suspension components

Frame	6061 Single-Butted Aluminum Alloy
Fork	Rockshox Psylo Silver R, 35mm stanchions, coil, rebound adjust
Rear Spacing	12x148mm
Fork Spacing	15x110mm

Wheelset

Rear Wheel	29″, 32H, BOOST Thru Axle, Tubeless Ready
Front Wheel	29″, 32H, BOOST Thru Axle, Tubeless Ready

Tires

Tires	Maxxis Rekon 29″x2.4″ Tubeless Ready
Type	MTB tubeless-ready tires

Ebike System

Speed	Class 1
Motor	Aventon a100 mid-drive, 36V, 250W (750W peak), 100Nm torque
Motor Torque	100Nm
Motor Power	250W (750W Peak)

Electronics

Display	Aventon BC201
Battery	Aventon 708Wh, 36V LG 21700 cells
Battery Weight	8.44 lbs
Throttle	N/A
Sensors	Double-sided torque sensor integrated in motor
Charger	42V 4A charger
Charging Time	5 hours (0% to 100%)
Lights	Integrated lights

Brakes

Front Brake	SRAM DB6 4-Piston Hydraulic Disc Brake
Rear Brake	SRAM DB6 4-Piston Hydraulic Disc Brake

Brake Rotors

Front Rotor	SRAM G2 200mm
Rear Rotor	SRAM G2 200mm

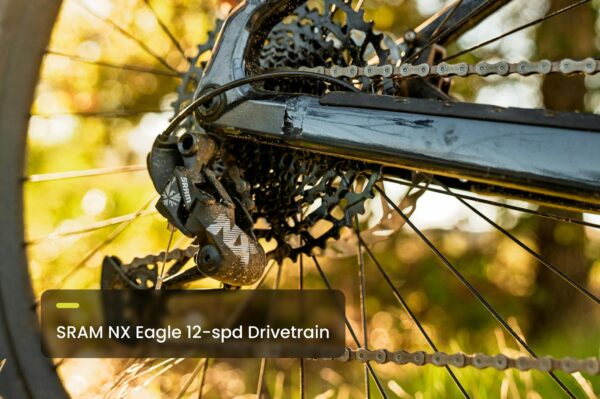

Drivetrain

Rear Derailleur	SRAM NX 12-Speed
Shifter	SRAM NX
Chain	SRAM 12-Speed

Transmission

Cassette	SRAM SX 12-Speed 10-50T
Chainring	SRAM 34T
Chainring BCD	104

Crankset

Crankset	165mm ISIS Splined
Bottom Bracket	N/A

Pedals

Pedals	9/16″ Alloy Platform
Type	Platform MTB pedals

Cockpit

Saddle	Aventon Saddle
Seatpost	Manic LC 150mm travel (M-XL), 31.6mm

Seatpost Details

Seatpost Length	395mm
Seatpost Clamp	34.9mm

Controls

Handlebars	760mm width, 35mm clamp, 33mm rise, 3° upsweep, 9° backsweep
Grips	Aventon Lock-on grips

Headset

Headset	T51Ks 28.656-5639.8 / H:23.4mm
System	Integrated headset system

Accessories

Kickstand	Included in accessory box
Lights	Included

Technical Overview

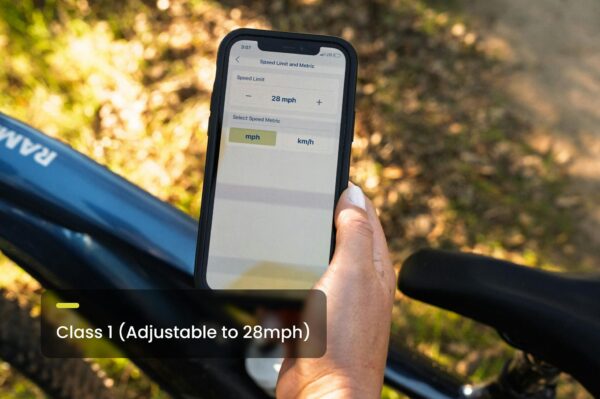

Overview	Ramblas comes as Class 1 with pedal assist. Convertible to Class 3 via Aventon MyRide app. Not throttle compatible. IP67 waterproof rating allows short-term submersion.
Ride Type	Trail / mountain riding

Color	Borealis, Cerulean, Tropos
Size	Extra Large, Large, Medium, Small
